GSA-300 VTOL Drone
GSA-300 VTOL Drone

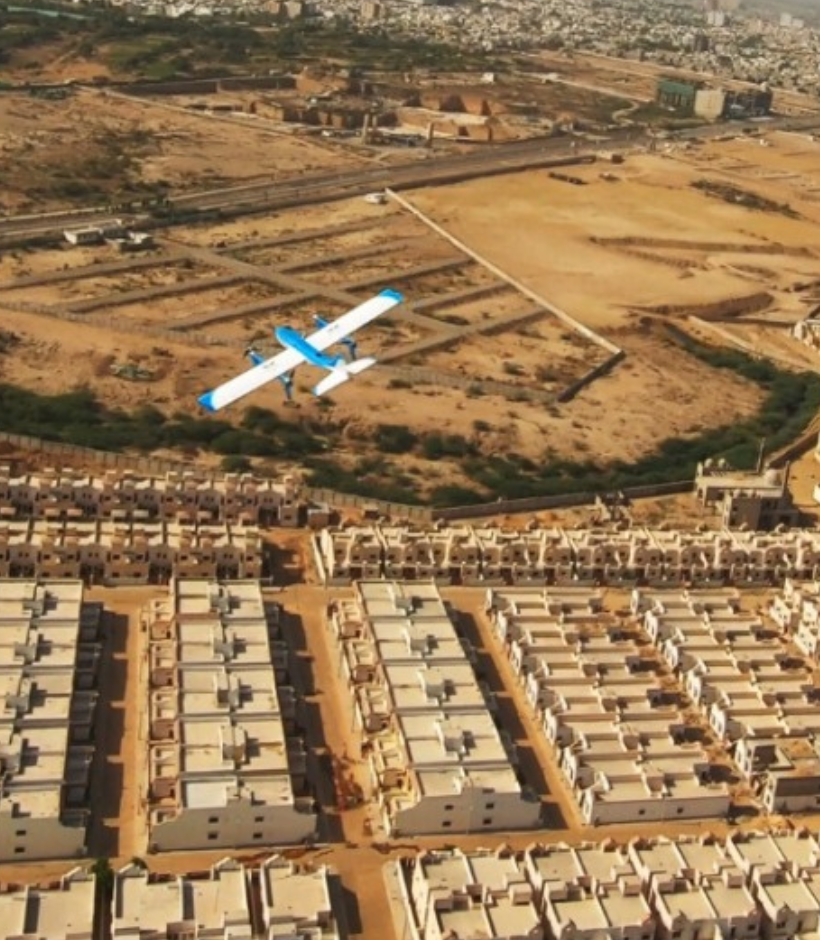

Dronepoulis GSA-300 is a 2.7 m wingspan aerodynamically optimized UAV. It uses electric powered motors for take-off and landing and does not require a runway or catapult. It is a composite airframe with 2 kg payload capacity, powered by a petrol engine for forward flight. The low fuel consumption enables a safe endurance of 5 hours. The GSA-300 can take-off from any surface and land on a 3×3 m surface with high accuracy.
Wie betrouwbaarheid en variatie zoekt, krijgt bij gonzocasino1.com een zeer coherente combinatie van beide eigenschappen. Populaire klassiekers zoals Book of Ra, Starburst en Gonzo’s Quest zijn vanzelfsprekend aanwezig. Een geïntegreerd antifraude-systeem monitort transacties in realtime op afwijkingen. Nieuwe spelers worden begroet met een uitgebreid welkomstpakket dat zich over meerdere stortingen uitstrekt. Belangrijke functies zijn nooit meer dan twee klikken van het huidige scherm verwijderd. Speciale missies bij feestdagen geven de reguliere spelroutine een extra dimensie. Live roulettetafels bieden verschillende spelvarianten, van klassiek Europees tot Lightning Roulette. De klantenservice is 24/7 bereikbaar via live chat en antwoordt meestal binnen enkele minuten. Touch-bediening en intuïtieve menu’s zorgen voor een prettige mobiele speelervaring. De voortdurende doorontwikkeling doet vermoeden dat het casino nog lang relevant zal blijven.
The UAV has a 17 kg MTOW (including payload). It can be operated by just two people. Flight missions are carried out fully autonomous!
The GSA-300 uses separate communication systems for datalink and video-link. The systems operate at different frequencies to increase redundancy. It is also possible to add Satellite communication. The video-link can use 256 bit AES encryption in order to secure the data transferred.
Technical Specifications
- Fully autonomous
- Capable of outdoor flights in harsh environment
- Capable to taking-off and landing vertically while flying horizontally
- 5 hours endurance
- Flight time (endurance) of up to 5 hours
- 2 kg payload
- 3000 m AMSL. max. altitude
- Optionally EFI engine
- 60 km/hr cruise speed
- 90 km/hr maximum speed
- 17 kg Maximum Take-off Weight
- 80-100W onboard power generation
- Fixed wing VTOL drone
- Capable of outdoor flights in harsh environment (wind up to 40 km/hr)
- Great endurance and great stability in high, turbulent winds
- Specifically designed for long-endurance stable flight
- Extensively used for surveillance and reconnaissance
- Can also be used for live video surveillance and monitoring of infrastructure
- Various payloads can be seamlessly integrated and used with this drone
- 61 MP Sony high resolution visual camera
- Multispectral cameras

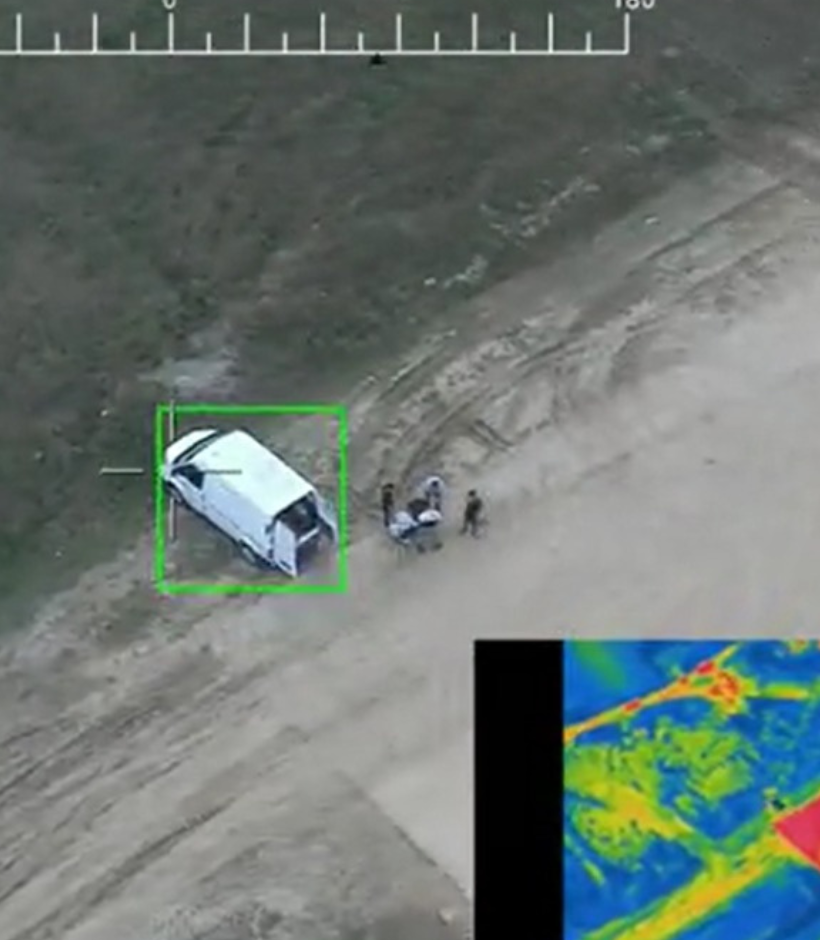

- EO/IR and thermal cameras (EO 1080p 30x zoom, TiR 640x512)
- Lidar
- Laser Range Finder (LRF)
- Laser Designator
Specifications
- Endurance – up to 5 hours
- Speed – 60 km/h
- Radio link range – 100 km
- Video transmission range – up to 50 km
- Max flight range – 300 km
- Max payload weight – up to 2 kg
- Altitude – 3000 m AGL
Take-off and Landing Requirements
- Autonomous vertical take-off using vertical lift motor-propellers
- Autonomous landing using vertical lift motor-propellers on fixed undercarriage
Operational conditions
- Wind gusts: up to 40 km/hr
- Operational temperature: from -5°С to +65°С
Payload options
- 42/61 MP Sony full frame photogrammetry camera
- Electro optical and thermal infrared camera
- Multispectral camera
- Lidar
- Laser Range Finder (LRF)
- Laser Designator
- Other types of payloads can also be integrated
